A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz۔

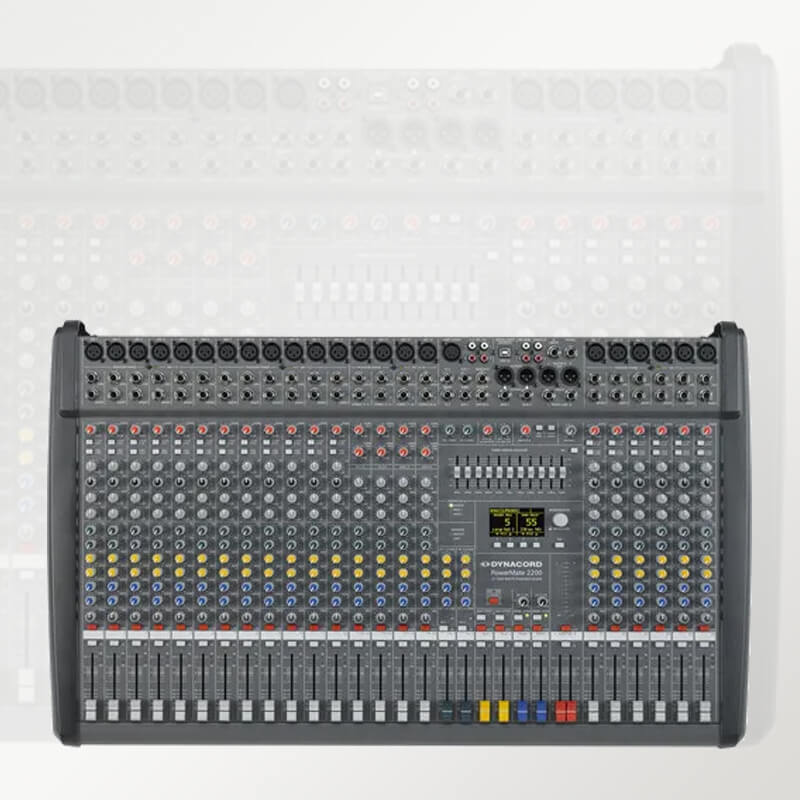

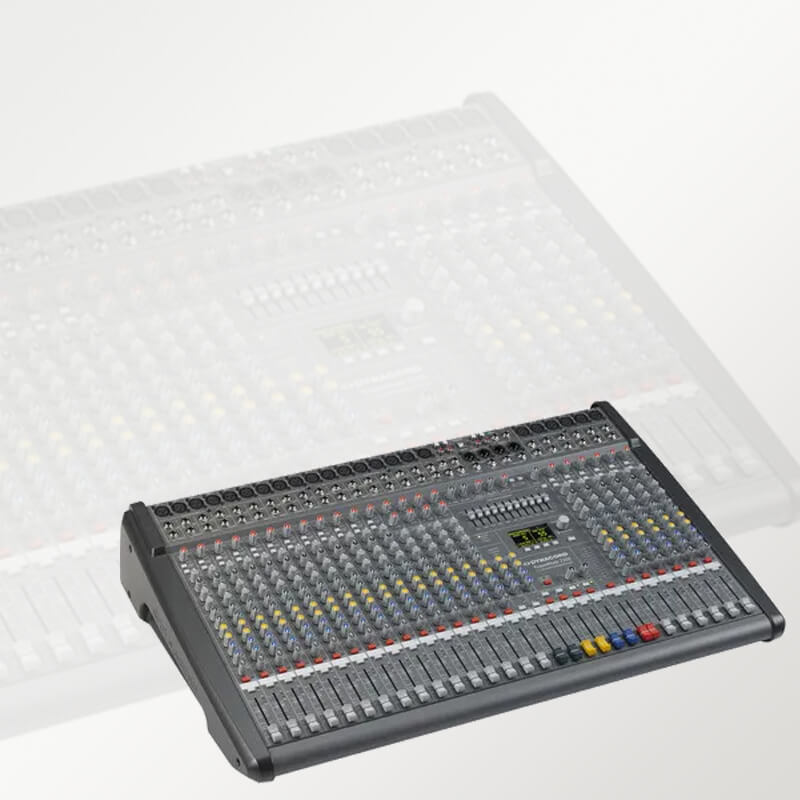

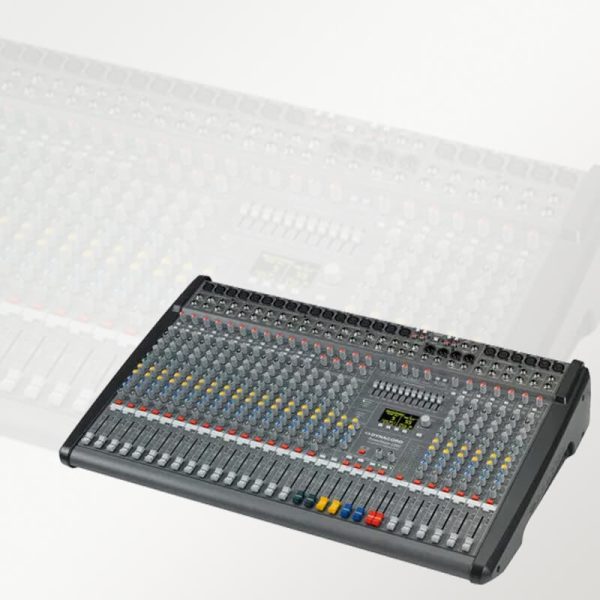

The PowerMate3 22-ChannelPowered Mixer from Dynacord features 18 mic/line and four mic/stereo-line channels. It also has six auxiliary ports, two of them switchable pre/post-fader. Two effects processors offer 100 factory presets, including the already legendary PowerMate reverbs. Each preset can be edited and stored to 20 user memories. Dynacord PowerMate 2200-3 22-Channel Powered Mixer in Pakistan
A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows the integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels. The amplifier features 2 x 1000W at 4 Ohms (RMS).
Steinberg Cubase software Efficient and lightweight with modern switching mode power supply technology and a class‑D output stage Optional speaker protection allows limitation of long-term power without giving up dynamics Made in Germany
In the Box
Channels
18 x Mic/Line
4 x Mic/Stereo Line
Auxiliary
2 x Pre
2 x Post
2 x Pre/Post Switchable
Output Power
Max Single Channel, Dynamic-Headroom, IHF-A:
Into 2.66 Ohms: 2 x 1600 W
Into 4 Ohms: 2 x 1250 W
Into 8 Ohms: 2 x 675 W
Max Single Channel, Continuous, 1 kHz, THD = 1%:
Into 2.66 Ohms: 2 x 1350 W
Into 4 Ohms: 2 x 1150 W
Into 8 Ohms: 2 x 650 W
Max Midband, 1 kHz, THD = 1%, Dual Channel:
Into 2.66 Ohms: 2 x 1350 W
Into 4 Ohms: 2 x 1000 W
Into 8 Ohms: 2 x 600 W
Rated, 20 Hz to 20 kHz, THD < 0.5%, Single Channel:
Into 4 Ohms: 2 x 900 W
Into 8 Ohms: 2 x 450 W
Maximum Output Voltage
Power Amplifier, 1 kHz, No Load: 74 V rms
Maximum THD @ 1kHz
MBW = 80 kHz:
MIC Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005%
Power AMP Inputs to Speaker L/R Outputs: < 0.075%
DIM 30
Power Amplifier, 3.15 kHz, 15 kHz: < 0.05%
IMD SMPTE
Power Amplifier, 60 Hz, 7 kHz: < 0.15%
Frequency Response
-3 dB, ref. 1 kHz:
Any Input to Any Mixer Output: 15 Hz to 70 kHz
Any Input to Speaker L/R Output: 20 Hz to 30 kHz
Crosstalk @ 1 kHz
Amplifier L/R: < -85 dB
Channel to Channel: < -80 dB
Mute- and Standby-Switch Attenuation: > 100 dB
Fader and FX/AUX/MON-Send Attenuation: > 85 dB
CMRR
MIC Input, 1 kHz: > 80 dB
Input Sensitivity
All Level Controls in Max Position:
Microphone: -74 dBu (155 µV)
Line (Mono): -54 dBu (1.55 mV)
Line (Stereo): -34 dBu (15.5 mV)
CD (Stereo): -34 dBu (15.5 mV)
Power AMP Inputs: +8 dBu (1.95 V)
Maximum Level
Mixing Desk:
Microphone Inputs: 21 dBu
Mono Line Inputs: 41 dBu
Stereo Line Inputs: 30 dBu
All Other Inputs: 22 dBu
All Other Outputs: 22 dBu
Input Impedances
Microphone: 2 Kilohms
Insert Return: 3.3 Kilohms
2-Track Return & CD Input: 10 Kilohms
All Other Inputs: > 15 Kilohms
Channels: 4 x Inputs / 4 x Outputs
AD/DA Conversion: 24-Bit
Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
PC Interface: USB 2.0, Female Type-B
Peak Display: 6 dB Before Clip
MIDI Connectors
1 x 5-Pin DIN, Input / Output
Power Control
Output: Adjustable Longterm RMS Limiter
Protection
Mixer Outputs (Relay Controlled): MON 1, MON 2, MASTER A
Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On Delay, Back EMF
Switching Mode Power Supply (µC controlled): Inrush Current Limiters, Mains Over/Undervoltage, Mains Overcurrent, High Temperature
Cooling
Continuous Speed-Controlled Fans
Phantom Power
Switchable In Groups: 48 VDC
Power Requirements
SMPS with Auto Range Mains Input: 100 to 240 VAC, 50/60 Hz
Power Consumption
At 1/8 Maximum Output Power, 4 Ohms: 450 W
Safety Class
I
Ambient Temperature
40 to 105°F / 5 to 40°C
Dimensions
32.2 x 6.1 x 19.6″ / 818.5 x 155 x 498.5 mm (without Lid)
Weight
39.7 lb / 18 kg
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz۔
19” Rack Mountable
16 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQTM Preamps
A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz.
High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
XLR mic inputs (Ch. 9, 11, 13, and 15)
Balanced ¼-inch line inputs (Ch. 9-16)
FX, processing, and channel libraries
SQ-Drive for stereo and multitrack recording/playback direct to USB drive
USB transfer of scenes, libraries, shows
Content
Dynacord Power Mixer Overview
The PowerMate3 22-ChannelPowered Mixer from Dynacord features 18 mic/line and four mic/stereo-line channels. It also has six auxiliary ports, two of them switchable pre/post-fader. Two effects processors offer 100 factory presets, including the already legendary PowerMate reverbs. Each preset can be edited and stored to 20 user memories. Dynacord PowerMate 2200-3 22-Channel Powered Mixer in Pakistan
A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows the integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels. The amplifier features 2 x 1000W at 4 Ohms (RMS).
Steinberg Cubase software Efficient and lightweight with modern switching mode power supply technology and a class‑D output stage Optional speaker protection allows limitation of long-term power without giving up dynamics Made in Germany
In the Box
THE MIXER THAT CHANGED THE RULES
38 in / 28 out Digital Mixer with remote wireless control
Our best-selling digital mixer combines exceptional functionality with innovative design to deliver a professional mixing experience with class-leading sound quality.
Whether you’re making the move from analogue or updating your digital desk, mixing live or in the studio, it’s time to experience Qu.
World Class Processing & FX
Qu’s RackFX dynamics and FX algorithms are derived from those used in our pro touring series.
Some of the world’s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.
Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.
Record. Stream. Mix
Qu-32’s built-in audio interface streams up to 32 selectable tracks to your Mac or PC and returns from the computer can be easily assigned to the Input channels.
The interface is class-compliant on Mac OS X making it truly plug ‘n play and will be recognized straight away by any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools. An ASIOTM and WDM compatible driver is available for Windows computers.
Standard MIDI control is tunnelled over the USB and network connections, this can be mapped to the faders of your favourite DAW using the A&H MIDI Control app which provides easy setup and emulation of HUI or Mackie Control protocols on Mac OS X and Windows systems.
Want to livestream? Easy. Just send a stereo mix over USB and your streaming software will do the rest.
Everything I/O
Qu-32 is a self-contained mixer, so if you’ve already got the analogue cables you’re good to go.
But if you’re thinking of trading in the multicore for a Cat5 digital snake, the built-in dSNAKE™ port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox from our Everything I/O range of remote expanders.
Qu-Drive: Record without a computer
Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive.
Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1.
On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.
FEATURE SUMMARY
32 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQTM Preamps
3 Stereo Inputs (TRS)
24 Mix Outputs (XLR)
4 Stereo Groups (switchable to Mix mode)
Up to 11 Monitor Mixes (4 mono + 7 stereo)
2 Stereo Matrix Outs
4 FX Engines
4 dedicated FX Sends / Returns
4 Mute Groups
4 DCA Groups
AES Digital Out
32×32 USB Audio Interface
dSNAKETM Remote Audio Port
33 Motor Faders
7” Touchscreen
10 Soft Keys
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
Automatic Mic Mixer
Channel Ducker on all Inputs
ProFactory Mic Presets
RackFX Library
Built-in Signal Generator
RTA with Peak Band indication
Spectrogram to aid feedback elimination and room acoustics
Qu-Drive Direct Multitrack Recording / Playback on USB drives
DAW MIDI Control
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Qu-Control customisable iOS app for simple wireless control
Compatible with ME Personal Mixing System
THE MIXER THAT CHANGED THE RULES

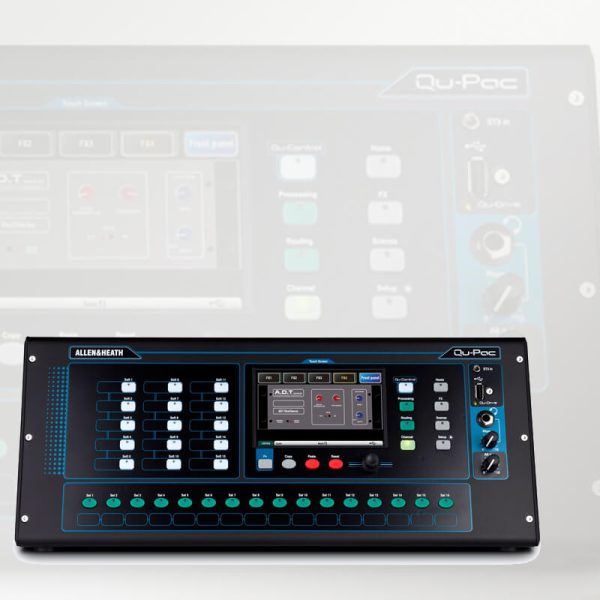

Compact 22 in / 12 out Digital Mixer with remote wireless control
Our best-selling digital mixer combines exceptional functionality with innovative design to deliver a professional mixing experience with class-leading sound quality. Whether you’re making the move from analogue or updating your digital desk, mixing live or in the studio, it’s time to experience Qu.
Our Best-Selling Digital Mixer
Inputs: 16 Mono / 3 Stereo
Mixes: 4 Mono / 3 Stereo / LR
24×22 USB Audio Interface
Comprehensive Channel Processing and FX
Intuitive Interface with Full Colour Touchscreen
Range of Remote Expanders
Suitable for:
Live
Studio
Streaming
A/V Install
Corporate Audio
Houses of Worship
Makes Mixing Feel Natural
Massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat.Qu-16 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-16 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-16’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.Complementing the touchscreen is the SuperStrip – a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.Coming from analog? Qu will make you feel at home.
World Class Processing And FX
Qu’s RackFX dynamics and FX algorithms are derived from those used in our pro touring series.Some of the world’s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.
Feature Summary
19” Rack Mountable
16 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQTM Preamps
3 Stereo Inputs (TRS)
12 Mix Outputs (XLR)
7 Monitor Mixes (4 mono + 3 stereo)
4 FX Engines
2 dedicated FX Sends / Returns
4 Mute Groups
4 DCA Groups
AES Digital Out
24×22 USB Audio Interface
dSNAKETM Remote Audio Port
17 Motor Faders
800×480 Touchscreen
4 Soft Keys
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
Automatic Mic Mixer
Channel Ducker on all Inputs
ProFactory Mic Presets
RackFX Library
Built-in Signal Generator
RTA with Peak Band indication
Spectrogram to aid feedback elimination and room acoustics
Qu-Drive Direct Multitrack Recording / Playback on USB drives
DAW MIDI Control
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Qu-Control customisable iOS app for simple wireless control
Compatible with ME Personal Mixing System
Dynacord Power Mixer Overview

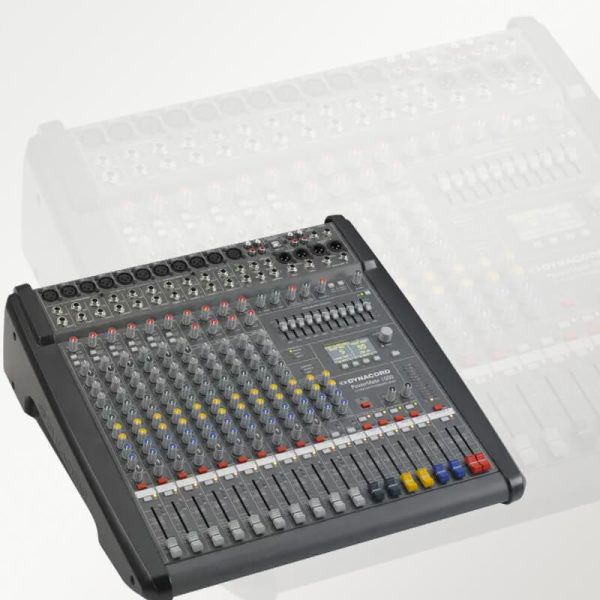

The PowerMate3 10-Channel Powered Mixer from Dynacord features six mic/line and four mic/stereo-line channels. It also has six auxiliary ports, two of them switchable pre/post fader. Two effects processors offer 100 factory presets, including the already legendary PowerMate reverbs. Each preset can be edited and stored to 20 user memories.
A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels. The amplifier features 2 x 1000W at 4 Ohms (RMS).
Steinberg Cubase software
Efficient and lightweight with modern switching mode power supply technology and a class‑D output stage
Slim housing protected by a rugged plastic lid with integrated handle for easy transportation
Optional speaker protection allows a limitation of long-term power without giving up dynamics
Made in Germany
In the Box
Dynacord PowerMate3 10-Channel Powered Mixer
Power Cord (6.6′)
DVD with USB Driver & Software
Limited 3-Year WarrantyCg
Small size. Bigger possibilities.
In a footprint of less than 2 square feet (0.19 square meters), the compact, 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it’s so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.
8 mono mic/line channel inputs, each with:
High-headroom Class A XMAX mic preamplifier
XLR mic and balanced ¼-inch line inputs
60 mm precision fader
4 stereo line channel inputs, with:
High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
XLR mic inputs (Ch. 9, 11, 13, and 15)
Balanced ¼-inch line inputs (Ch. 9-16)
Unbalanced RCA line inputs (Ch. 13-16)
60 mm precision fader (4 stereo)
4 Auxiliary buses (pre/post-fader send)
2 Internal FX buses
2 stereo 32-bit digital effects processors with customizable reverb and delay presets
Fat Channel signal processing on all channels and buses, with:
3-band semi-parametric EQ (individual band on/off)
Full-featured compressor
Standard downward expander
Limiter
Phase reverse (12 mic preamplifiers only)
Pan with dedicated 15-LED display
Stereo link for input channels and aux buses
Highpass filter
One 31-band stereo graphic EQ (on main outputs only)
18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
Compatible with most audio software via ASIO, Windows Audio, Core Audio
Scene store and recall
Settings can be copied among channels and buses and saved as user presets.
Software bundle includes:
PreSonus® Studio One® Artist digital audio workstation for macOS® and Windows ®
PreSonus Capture® live-recording software for macOS and Windows
PreSonus UC Surface mixer-control software for macOS, Windows, Android™, and iPadOS®
Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android provides wireless remote control of aux mixes
Ableton® Live Lite
Lockout mode protects your settings from meddlers and accidents
MIDI Control Mode provides control over:
Scene and FX Preset recall
Main Volume, FXA, and FXB output levels
FXA and FXB assign/unassign to Mains

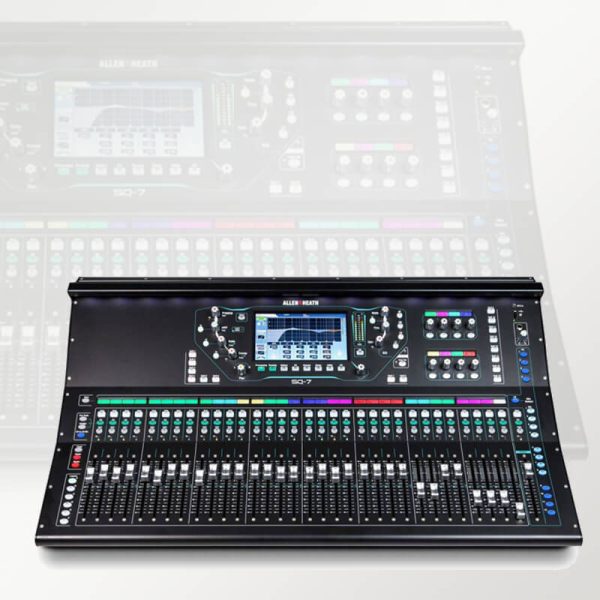

The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer’s 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.
At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ’s DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer’s inputs and mix channels, all without adding system latency or setup hassles.
The front panel is centered around the mixer’s 7″ capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.
The SQ-7 offers expansion options via Allen & Heath’s stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer’s SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.
Compact digital mixer for live, studio, and installation
48 input channels
32 local mic inputs (XLR)
Two 1/4” stereo inputs (TRS)
One 1/8″ stereo input
36 total busses
12 stereo mixes (Aux or Group) + Main
PAFL bus
18 assignable local outputs (16 XLR + two 1/4” TRS)
AES digital output
Dedicated talkback mic input (XLR)
1/4″ TRS headphone out with dedicated control
SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64×64 channels)
I/O port for option card (including 3rd party protocols – Dante/Waves)
