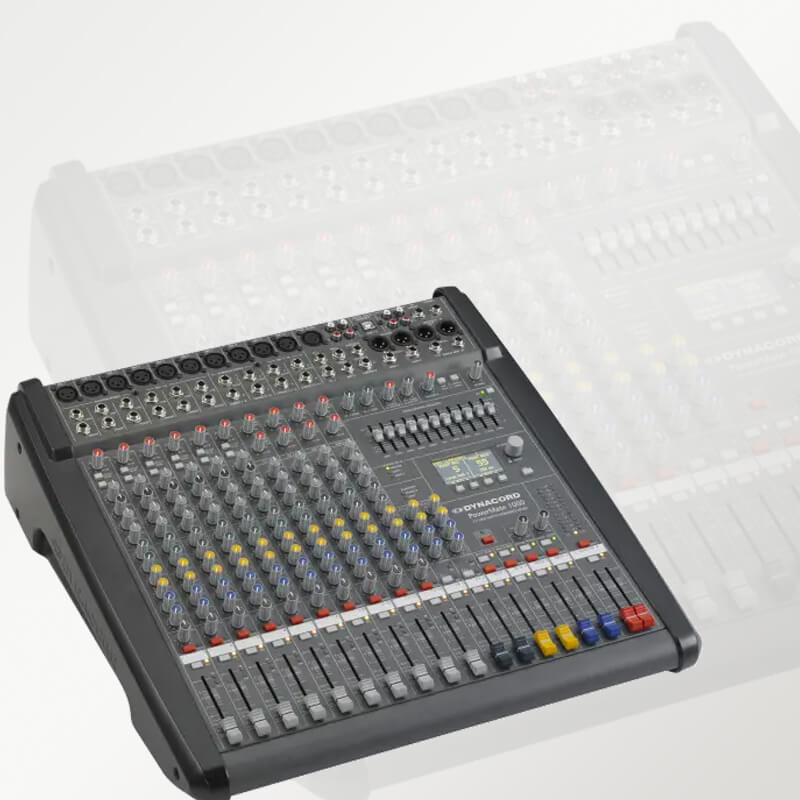

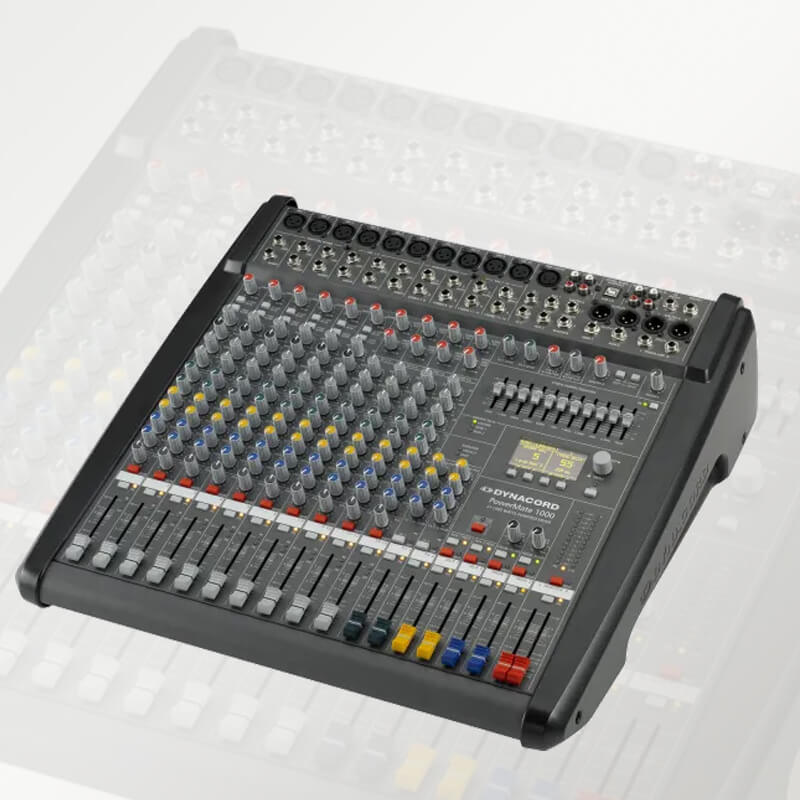

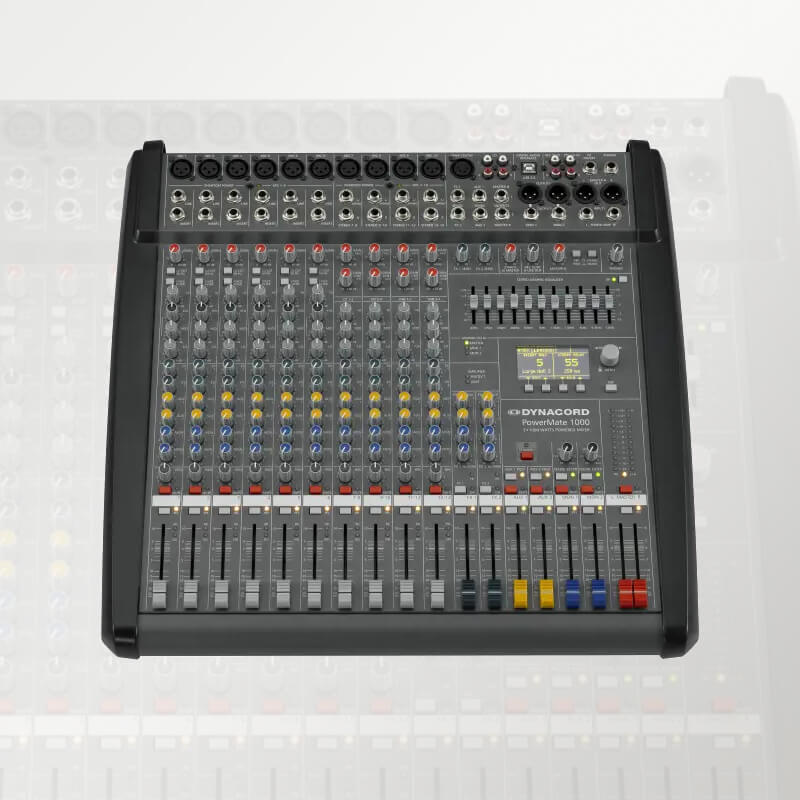

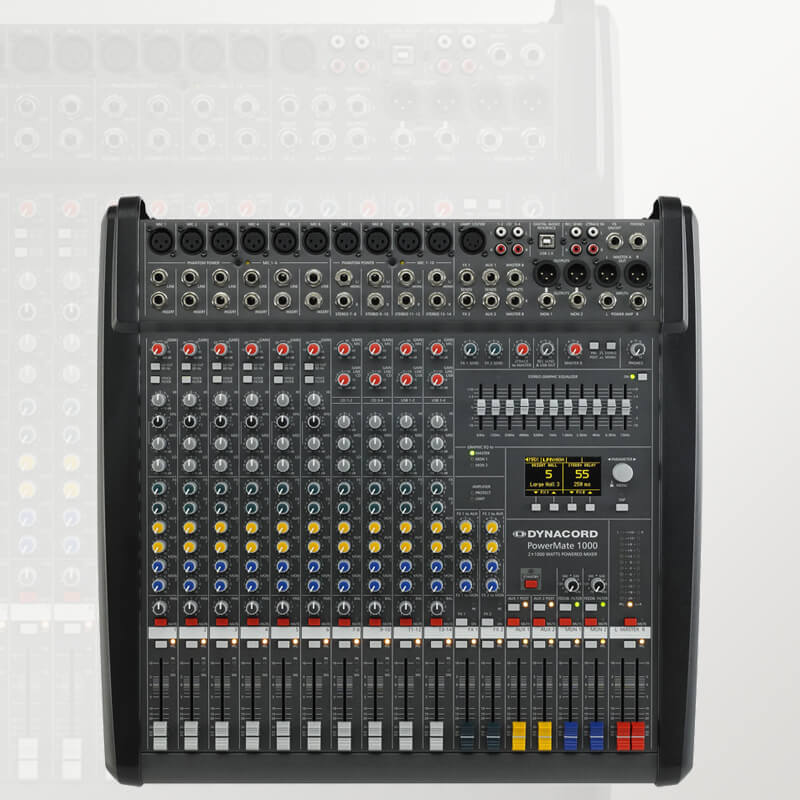

Dynacord Power Mixer Overview
The PowerMate3 10-Channel Powered Mixer from Dynacord features six mic/line and four mic/stereo-line channels. It also has six auxiliary ports, two of them switchable pre/post fader. Two effects processors offer 100 factory presets, including the already legendary PowerMate reverbs. Each preset can be edited and stored to 20 user memories.
A built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels. The amplifier features 2 x 1000W at 4 Ohms (RMS).
Steinberg Cubase software
Efficient and lightweight with modern switching mode power supply technology and a class‑D output stage
Slim housing protected by a rugged plastic lid with integrated handle for easy transportation
Optional speaker protection allows a limitation of long-term power without giving up dynamics
Made in Germany
In the Box
- Dynacord PowerMate3 10-Channel Powered Mixer
- Power Cord (6.6′)
- DVD with USB Driver & Software
- Limited 3-Year WarrantyCg
|
The Allen & Heath SQ-7 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-7 features 32+1 motorized faders and 32 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer’s 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Automatic Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more.
At the heart of the SQ-7 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel/mix counts and ample FX processing. The SQ’s DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer’s inputs and mix channels, all without adding system latency or setup hassles.
The front panel is centered around the mixer’s 7″ capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-7 offers 16 softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, handy for virtual sound checks and studio mixing.
The SQ-7 offers expansion options via Allen & Heath’s stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer’s SLink port, or from a connected remote expander. The Allen & Heath SQ-7 includes a power cord.
- Compact digital mixer for live, studio, and installation
- 48 input channels
- 32 local mic inputs (XLR)
- Two 1/4” stereo inputs (TRS)
- One 1/8″ stereo input
- 36 total busses
- 12 stereo mixes (Aux or Group) + Main
- PAFL bus
- 18 assignable local outputs (16 XLR + two 1/4” TRS)
- AES digital output
- Dedicated talkback mic input (XLR)
- 1/4″ TRS headphone out with dedicated control
- SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64×64 channels)
- I/O port for option card (including 3rd party protocols – Dante/Waves)
- 8 mute groups
- 8 DCA groups
- 8 stereo FX with dedicated FX returns
- DEEP processing ready
- RackFX effects suite
- 7″ color touchscreen
- 16 assignable SoftKeys
- Eight assignable soft rotaries
- Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)
- 32+1 faders with 6 layers for 192 assignable channel strips
- Motorized faders for sends on faders, GEQ fader flip, and mix recall
- 32 backlit LCD channel-strip displays
- Chromatic channel metering
- Integrated surface illumination
- Single/dual footswitch control
- Input channel linking for stereo sources
- Patchable insert points
- Input processing – Preamp, HPF, Gate, PEQ, Compressor, Delay
- Mix processing – PEQ, Graphic EQ, Compressor, Delay
- Fully integrated Automatic Mic Mixing (AMM)
- 31-band, real-time analyzer (RTA)
- Quick copy/paste/reset for parameters
- User permissions to restrict operator access
- 300 scene memories per show
- Channel safes, global and per-scene recall filters
- FX, processing, and channel libraries
- SQ-Drive for stereo and multitrack recording/playback direct to USB drive
- USB transfer of scenes, libraries, shows
- 32×32 channel USB streaming to/from Mac/Windows
- DAW control driver for MIDI control via USB or TCP/IP
- Wireless remote mixing apps for iPad and Android
- Compatible with ME personal-monitoring range
|
Designed to accommodate a wide variety of live sound reinforcement and recording scenarios, the Allen & Heath Qu-Pac is a 16-input 12-output rackmountable console-less digital mixer that doubles as a 32×32 USB recording interface. Featuring 16 of the company’s recallable AnalogiQ microphone preamps and powered by a 5 core ARM processor, the Qu-Pac provides a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, and reverb.
The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-Pac can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network. Engineered for intuitive navigation, the mixer also features a 5″ touchscreen display, providing access to all settings.
- 16 AnalogiQ recallable preamps
- 16 onboard mic/line inputs (XLR / TRS)
- Expandable up to 38 inputs via dSNAKE
- 3 stereo inputs (TRS)
- 32 mono + 3 stereo input channels
- 12 onboard mix outputs (XLR)
- 4 stereo groups
- 2 stereo matrix outs
- AES digital out
- 4 DCA groups
- 4 mute groups
- Qu-Pad iPad app for all live mixing controls
- Qu-You iPhone app for personal monitoring
- Qu-Drive direct multitrack recording/playback on USB drives
- 15 soft keys
- 16 custom select keys
- Qu-Control custom screen to suit the application
- 4 FX engines
- 4 FX sends/returns
- 32×32 USB Audio Interface
- 5″ touchscreen
- iLive FX Library
- Compatible with ME Personal Mixing System
- Trim, polarity, HPF, gate, insert/ducker, 4-band PEQ, compressor and delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, and delay on all mix outputs
- Built-in signal generator
- RTA with peak band indication
|
THE MIXER THAT CHANGED THE RULES
30 in / 24 out Digital Mixer with remote wireless control
Our best-selling digital mixer combines exceptional functionality with innovative design to deliver a professional mixing experience with class-leading sound quality.
Whether you’re making the move from analogue or updating your digital desk, mixing live or in the studio, it’s time to experience Qu.
Makes Mixing Feel Natural
Massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat.
Qu-24 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-24 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.
The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-24’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.
Complementing the touchscreen is the SuperStrip – a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.
Coming from analogue? Qu will make you feel at home.
Qu-Drive: Record without a computer
Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive.
Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1.
On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.
AMM: Automatic Mic Mixer
AMM is vital in applications such as conferences, meetings and panel discussions where a number of microphones are open at the same time.
Reducing background noise and minimising the risk of feedback, the Automatic Microphone Mixer helps the engineer to manage the levels of multiple mic inputs, ensuring that each speaker’s contribution is heard clearly.
The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers. Up to 16 microphone sources can be mixed at once, with each channel having a priority setting which determines its ‘weight’ in the total system gain.
FEATURE SUMMARY
- 24 Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 3 Stereo Inputs (TRS)
- 20 Mix Outputs (XLR)
- 2 Stereo Groups (switchable to Mix mode)
- Up to 9 Monitor Mixes (4 mono + 5 stereo)
- 2 Stereo Matrix Outs
- 4 FX Engines
- 4 dedicated FX Sends / Returns
- 4 Mute Groups
- 4 DCA Groups
- AES Digital Out
- 32×30 USB Audio Interface
- dSNAKETM Remote Audio Port
- 25 Motor Faders
- 800×480 Touchscreen
- 10 Soft Keys
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
- Automatic Mic Mixer
- Channel Ducker on all Inputs
- ProFactory Mic Presets
- RackFX Library
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid feedback elimination and room acoustics
- Qu-Drive Direct Multitrack Recording / Playback on USB drives
- DAW MIDI Control
- Qu-Pad iPad App
- Qu-You iPhone / Android personal monitoring app
- Qu-Control customisable iOS app for simple wireless control
- Compatible with ME Personal Mixing System
|
THE MIXER THAT CHANGED THE RULES
Compact 22 in / 12 out Digital Mixer with remote wireless control
Our best-selling digital mixer combines exceptional functionality with innovative design to deliver a professional mixing experience with class-leading sound quality. Whether you’re making the move from analogue or updating your digital desk, mixing live or in the studio, it’s time to experience Qu.
- Our Best-Selling Digital Mixer
- Inputs: 16 Mono / 3 Stereo
- Mixes: 4 Mono / 3 Stereo / LR
- 24×22 USB Audio Interface
- Comprehensive Channel Processing and FX
- Intuitive Interface with Full Colour Touchscreen
- Range of Remote Expanders
- Suitable for:
- Live
- Studio
- Streaming
- A/V Install
- Corporate Audio
- Houses of Worship
Makes Mixing Feel Natural
Massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat.Qu-16 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-16 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.The True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-16’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.Complementing the touchscreen is the SuperStrip – a set of single-function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.Coming from analog? Qu will make you feel at home.
World Class Processing And FX
Qu’s RackFX dynamics and FX algorithms are derived from those used in our pro touring series.Some of the world’s most respected audio engineers have chosen to use RackFX on tour in preference to top-end plug-ins and external FX units.Qu boasts 4 stereo RackFX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more. FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels, and each Stereo FX Return has a dedicated 4 band PEQ.
- 19” Rack Mountable
- 16 Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 3 Stereo Inputs (TRS)
- 12 Mix Outputs (XLR)
- 7 Monitor Mixes (4 mono + 3 stereo)
- 4 FX Engines
- 2 dedicated FX Sends / Returns
- 4 Mute Groups
- 4 DCA Groups
- AES Digital Out
- 24×22 USB Audio Interface
- dSNAKETM Remote Audio Port
- 17 Motor Faders
- 800×480 Touchscreen
- 4 Soft Keys
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
- Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
- Automatic Mic Mixer
- Channel Ducker on all Inputs
- ProFactory Mic Presets
- RackFX Library
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid feedback elimination and room acoustics
- Qu-Drive Direct Multitrack Recording / Playback on USB drives
- DAW MIDI Control
- Qu-Pad iPad App
- Qu-You iPhone / Android personal monitoring app
- Qu-Control customisable iOS app for simple wireless control
- Compatible with ME Personal Mixing System
| Small size. Bigger possibilities.
In a footprint of less than 2 square feet (0.19 square meters), the compact, 16-channel StudioLive 16.0.2 USB offers 8 mono input channels, 4 stereo channels, and 4 aux buses, each with a high-quality, 60 mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, accurate metering, and a built-in multichannel recording interface. As with all StudioLive mixers, the 16.0.2 USB comes with a suite of tightly integrated recording, control, and audio analysis software. And it’s so lightweight and compact that you can easily hold it in one hand and tuck it under your arm.
8 mono mic/line channel inputs, each with:
- High-headroom Class A XMAX mic preamplifier
- XLR mic and balanced ¼-inch line inputs
- 60 mm precision fader
4 stereo line channel inputs, with:
- High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
- XLR mic inputs (Ch. 9, 11, 13, and 15)
- Balanced ¼-inch line inputs (Ch. 9-16)
- Unbalanced RCA line inputs (Ch. 13-16)
- 60 mm precision fader (4 stereo)
- 4 Auxiliary buses (pre/post-fader send)
2 Internal FX buses
2 stereo 32-bit digital effects processors with customizable reverb and delay presets
Fat Channel signal processing on all channels and buses, with:
- 3-band semi-parametric EQ (individual band on/off)
- Full-featured compressor
- Standard downward expander
- Limiter
- Phase reverse (12 mic preamplifiers only)
- Pan with dedicated 15-LED display
- Stereo link for input channels and aux buses
- Highpass filter
One 31-band stereo graphic EQ (on main outputs only)
18-in/16-out USB recording interface (24-bit/44.1 kHz and 48 kHz)
- Compatible with most audio software via ASIO, Windows Audio, Core Audio
Scene store and recall
Settings can be copied among channels and buses and saved as user presets.
Software bundle includes:
- PreSonus® Studio One® Artist digital audio workstation for macOS® and Windows ®
- PreSonus Capture® live-recording software for macOS and Windows
- PreSonus UC Surface mixer-control software for macOS, Windows, Android™, and iPadOS®
- Free downloadable PreSonus QMix®-UC software for iPhone®/iPod touch® and Android provides wireless remote control of aux mixes
- Ableton® Live Lite
Lockout mode protects your settings from meddlers and accidents
MIDI Control Mode provides control over:
- Scene and FX Preset recall
- Main Volume, FXA, and FXB output levels
- FXA and FXB assign/unassign to Mains
|
