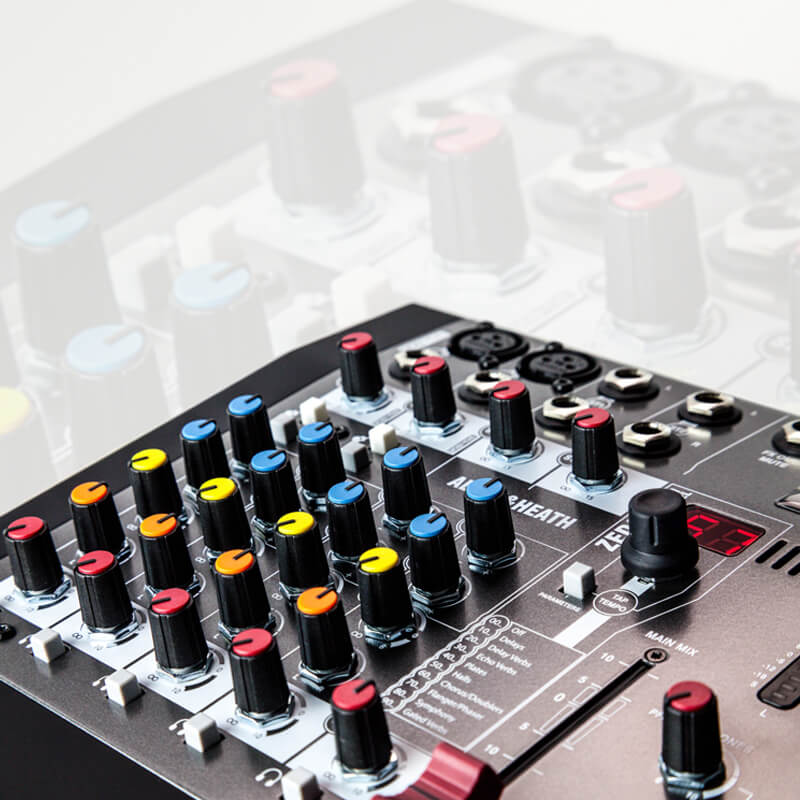

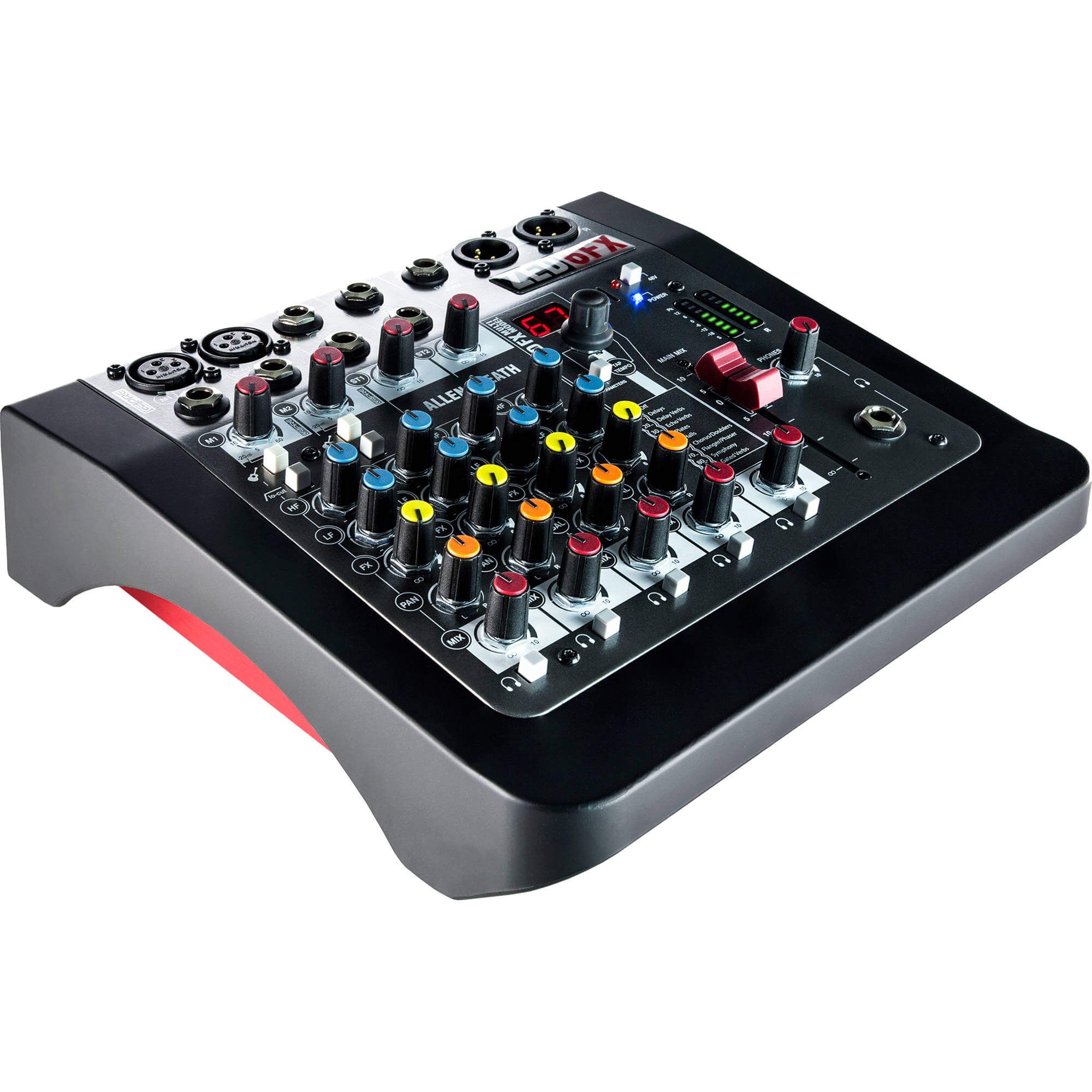

Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZED-6FX is a six-input analog mixer with an internal effects engine that sports reverb, delay, chorusing, and tap-tempo functionality. Solo musicians, lectures, and small bands alike can find this unit suitable for modest venues, hotels, churches, and schools.
The ZED-6FX is crafted with preamps modeled on the Allen & Heath GS2-R24, and, as such, aims to provide low noise, warmth, and a vast expanse of headroom. On-board two-band MusiQ EQs also come standard with the unit, as well as 48V phantom power for the two mic inputs. Guitar players using the ZED-6FX need not lug an extra DI box around, as the unit features two high-impedance guitar inputs. Channels three and four host dual 1/4″ stereo line-level inputs.
You can monitor the outputs of the mixer either through headphones or through two XLR outputs, utilizing an eight-LED meter all the while. If you’d like to hear a sound source before placing it within the audible mix, simply press the PFL button located at the bottom of each channel strip.
Key Features
2x Mic/Line inputs with separate XLR and TRS jack sockets
2x Stereo inputs with TRS jack sockets
2x Guitar DI high-impedance inputs, eliminating the need for DI boxes
Internal FX engine with tap tempo
High-pass filter for cleaning up unwanted low-frequency noise
2-band EQ for tonal shaping
60mm smooth travel fader on main mix
XLR main outputs
8x LED signal metering
48V Phantom Power for condenser mics
Internal power supply
Mixer
Number of Analog Input Channels
6 (2 Mono / 2 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1 x Stereo Master Output
1 x Stereo Headphone Output
Faders
4 x Channel Fader
Meters
Main Meter:
2 x 8-Segment LED
Signal Processing
EQ Parameters
Low: at 80 Hz High: at 12 kHz
Filters
2 x High-Pass: 100 Hz
Built-In Effects
Yes
Connectivity
Analog Inputs
2 x XLR 3-Pin Mic Input
2 x 1/4″ TRS Line Input
4 x 1/4″ TRS Line Input (2 Stereo Pairs)
Analog Outputs
2 x XLR 3-Pin Main Output
1 x 1/4″ TRS Headphone Output
1 x 1/4″ FX Output
Phantom Power
Yes
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
12 W
Physical
Rack Mountable
No
Dimensions
3.5 x 9.8 x 9.3″ / 88.9 x 246.4 x 236.2 mm
Weight
3 lb / 1.4 kg
Packaging Info
Package Weight
4.95 lb
Box Dimensions (LxWxH)
14.9 x 12 x 5.6″
