Presonus AudioBox 96 Studio Bundle 25th Anniversary Edition

In Stock

Categories: Headphone, Microphone, Sound Card, Studio Monitors

Professional condenser microphone at an unbeatable price
Great choice for recording vocals, guitar, podcasts, and more
Exceptional clarity throughout its frequency-response range, with a warm top end

Description

PreSonus also has updated two of its complete recording solutions with the AudioBox USB 96 25th Anniversary Edition interface. The updated AudioBox 96 Studio Bundle 25th Anniversary Edition mates the new interface with Studio One Artist, HD7 headphones, an M7 large-diaphragm condenser microphone, a desktop tripod mic stand, and cables. The AudioBox Studio Ultimate Bundle 25th Anniversary Edition adds a pair of Eris E3.5 studio monitors to the AudioBox 96 Studio Bundle 25th Anniversary Edition to provide a complete recording and listening setup. The new interface and recording bundles are available immediately for the following anticipated U.S. street prices: AudioBox USB 96 25th Anniversary Edition $99.95; AudioBox 96 Studio Bundle 25th Anniversary Edition $209.95; AudioBox Studio Ultimate Bundle 25th Anniversary Edition $309.95.

For more information about the AudioBox USB 96 25th Anniversary Edition audio interface, visit www.presonus.com/products/AudioBox-USB-96. For more about PreSonus’ complete recording solutions, visit www.presonus.com/products/Complete-Recording-Solutions.

General Features M7

Professional condenser microphone at an unbeatable price
Great choice for recording vocals, guitar, podcasts, and more
Exceptional clarity throughout its frequency-response range, with a warm top end
Cardioid polar pattern
Side address
1-inch (25 mm) back electret condenser capsule
Rugged construction
Hard mount, 10-foot XLR cable, and carrying case included

Features Eris E3.5

Components and construction

3.5-inch (89 mm), woven composite, low-frequency transducer
1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
Rear-firing acoustic port for superior bass-frequency reproduction
Optimized, resonance-suppressing internal bracing

User controls

High- and low-frequency tuning controls
Front-panel Volume control for speakers and headphone amplifier

Power and safety

50 watt (25W/side), Class AB biamplification
RF interference, output current limiting, over-temperature, transient, and subsonic protection
Amplifier “soft start” feature eliminates popping on power-up
Internal power supply with IEC connector
Power switch with on/off LED

Inputs and outputs

Balanced ¼-inch TRS, unbalanced 1/8-inch stereo, and RCA inputs
Integrated stereo headphone amplifier with front-panel 1/8-inch output

Included Accessories

Speaker wire
1/8-inch TRS to Stereo RCA cable
Stereo RCA to Stereo TS cable
Studio One^® Prime and Studio Magic Software Suite ($1,000 value!)

Features HD7

High-resolution drivers
Precision-tuned acoustic chamber
Extended bass response
Built tough to withstand abuse
Auto-fit head pads
Comfortable and long-lasting ear pads
Single-side cable
Optimized pressure
Lightweight

Features AudioBox USB 96

2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers
2 combo mic/instrument inputs
Individual channel-trim controls with 0 to +35 dBu mic gain range
48V phantom power for condenser microphones
Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
Headphone jack with level control
Main-output level control
LED clip indicator for each channel

Input/Output

1 USB 2.0 port
2 combo XLR/¼-inch mic/instrument inputs
2 balanced ¼-inch main (L/R) line outputs
1 stereo ¼-inch headphone output
MIDI In/Out

Digitalia

24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
Professional-grade A/D/A converters (+105 dBu dynamic range)
Zero-latency monitoring via internal mixer
Compatible with most Mac® and Windows® recording software

Included Software

Studio One^® Artist
Studio Magic Software Suite
Ableton^® Live Lite

Physical

1/3U rack-mountable (with optional 3UMR rack-mounting system)
Road-rugged construction with all-metal chassis and metal knobs
Weighs just 5 lbs (2.3 kg)
Powered via USB bus—no wall wart!

Computer system requirements:

Below are the minimum computer-system requirements for AudioBox USB 96.

macOS^®

macOS version 10.13 or later
200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates)
Available USB port

Windows^®

Windows 10 or later (64-Bit Only)
200 MB storage space and 4 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
Available USB port

Capsule Type	Back-electret condenser
Polar Patter	Unidirectional
Sensitivity	-38 dB ±3 dB (0 dB=1V/Pa at 1 kHz)
Frequency Response	20 Hz to 18 kHz
Output Impedance	150Ω ±30% (at 1 kHz)
Equivalent Noise Level	19 dBA
Maximum SPL	134 dB (at 1 kHz = 1% THD)
S/N Ratio	75 dB
Working Voltage	48V Phantom Power

PX-1 Frequency Plot Diagram

PX-1 Polarity Diagram

Technical Specifications Eris E 3.5

Inputs
	1- Stereo 1/8″
	2- Balanced ¼” TRS
	2- Unbalanced RCA

Performance
Frequency Response	80 Hz – 20 kHz
Crossover Frequency	2.8 kHz
Amplifier Power	25W/speaker
LF Driver	3.5″
HF Driver	1” silk dome
Peak SPL (@ 1 meter)	100 dB
Input Impedance	10 kΩ

User Controls
Volume Range	A-type taper
MF Control	Variable (-6 to +6 dB, center 100 Hz)
HF Control	Variable (-6 to +6 dB, center 10 kHz)

Protection
	RF interference
	Output-current limiting
	Over-temperature
	Turn-on/off transient
	Subsonic filter
	External mains fuse

Power
	100-120V ~50/60 Hz or 220-240V ~50/60 Hz

Cabinet
	Vinyl-laminated, medium-density fiberboard

Physical
Width	5.6″ (141 mm)
Depth	6.4″ (162 mm)
Height	8.3″ (210 mm)
Weight (per pair)	6.4 lb. (2.9 kg)

Technical Specifications HD7

Acoustic Design	Dynamic, semi-open
Driver	50 mm, neodymium
Frequency Response	10 Hz to 30 kHz
Sensitivity	98 dB SPL (1 mW)
Maximum Power	300 mW
Rated Impedance	32Ω
Earpad	Leather
Weight, without Cable	7.8 oz (222g)
Cable	8′ 2″ (2.5m) straight, single-sided
Plug Adapter	1/8″ to 1/4″ (3.5 to 6.3 mm), screw-on, gold-plated, stereo mini-plug

Technical Specifications AudioBox USB 96

Microphone Preamp
Type	XLR Female Balanced
Frequency Response (±3.0 dB)	20 Hz to 20 kHz
Input Impedance (Balanced)	1200Ω
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)	< 0.008%
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)	> 95 dB
Common Mode Rejection Ratio (1 kHz, 55 dB Gain)	> 45 dB
Gain Control Range (± 2 dB)	+6 dB to +52 dB
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N)	-3 dBu
Phantom Power (±2 VDC)	+48 VDC

Instrument Input
Type	¼” TS Female Unbalanced
Input Impedance	0.5 MΩ
Gain Control Range (± 2 dB)	+2d B to +48 dB

Line Outputs
Type	¼” Balanced
Output Impedance	51Ω

Headphone Output
Type	¼” TRS Active Stereo
Maximum Output	60 mW/Ch @ 60Ω Load
Frequency Response (±1.0 dB)	20 Hz – 30 kHz

MIDI I/O
Type	Dual 5-pin Female DIN

Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)	105 dB
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate)	105 dB
Bit Depth	24
Reference Level for 0 dBFS	+4 dBu
Supported Sample Rates (kHz)	44.1, 48, 88.2, 96
Power	USB 2.0 bus-powered

Physical
Dimensions	1/3U (steel chassis)
Height	5.5” (139.7 mm)
Depth	1.75″ (44.45 mm)
Width	5.5” (139.7 mm)
Weight	1.3 lbs (0.59 kg)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Quick Comparison

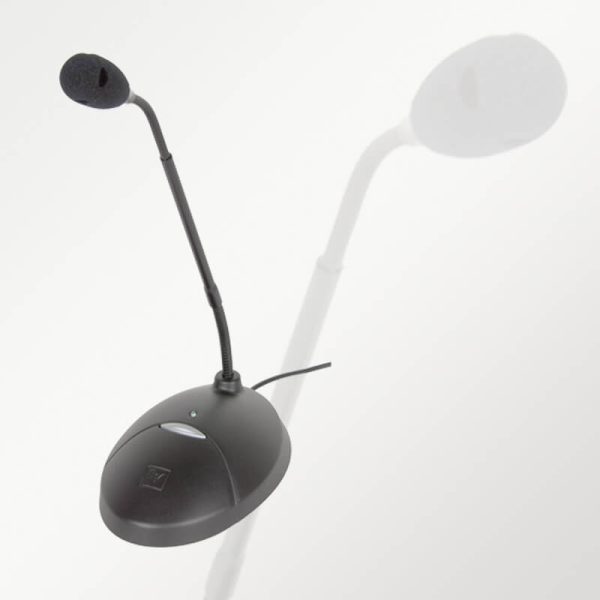

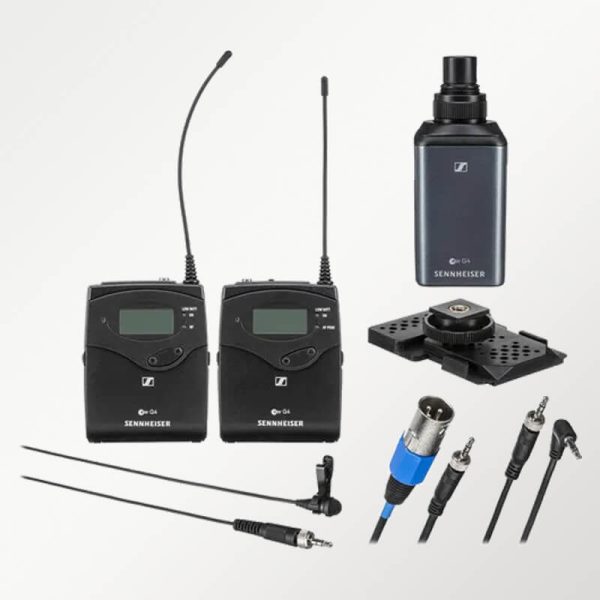

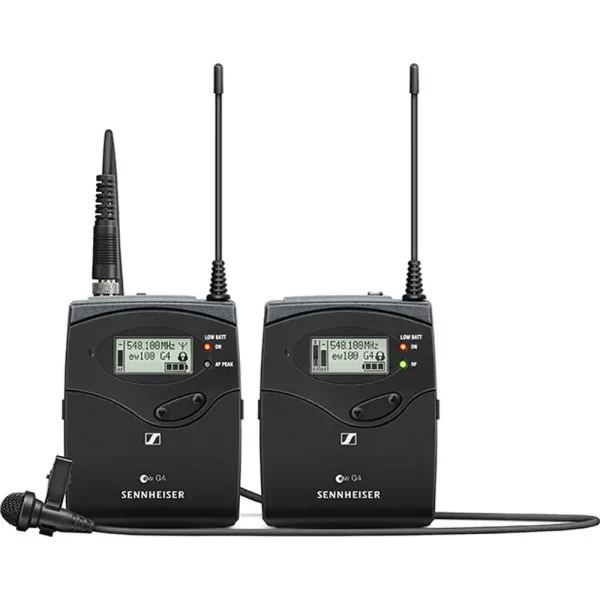

Settings	Presonus AudioBox 96 Studio Bundle 25th Anniversary Edition remove	SSL 2+ Professional Collaborative Studio remove	Presonus Quantum 4848 remove	Sennheiser EW 100 G4-ME2 Wireless Omni Lavalier Microphone System remove	Electro Voice PC Desktop 12 remove	Sennheiser HD 280 Pro Circumaural Closed-Back Monitor Headphones remove
